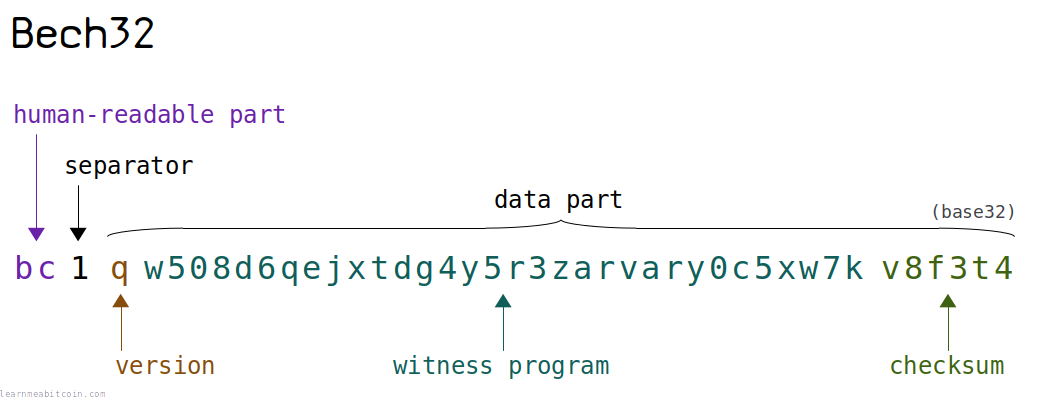

Bech32

# --------
# settings
# --------

# human-readable prefix to use in the final Bech32 address
hrp = "bc" # bc = mainnet, tb = testnet

# separator between the human-readable part and the data part
separator = "1" # this is always 1

# base32 character set
characters = "qpzry9x8gf2tvdw0s3jn54khce6mua7l" # all lowercase alphanumeric characters except for "1", "b", "i", "o"

# display full checksum algorithm
display_checksum_algorithm = true # true or false

puts "------------"
puts "scriptpubkey"
puts "------------"
puts

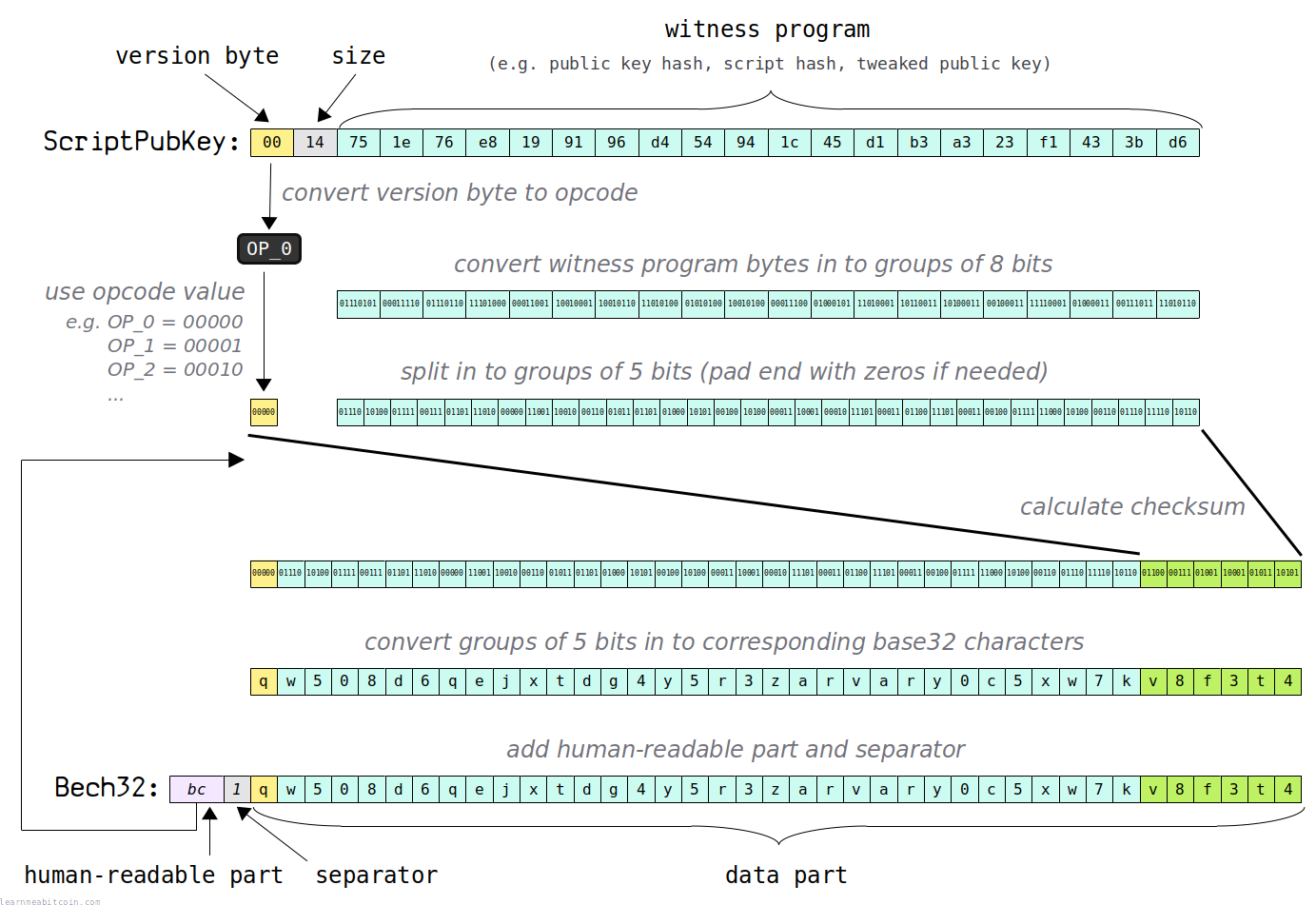

# scriptpubkey we want to convert to Bech32
scriptpubkey = "0014751e76e8199196d454941c45d1b3a323f1433bd6" # example P2WPKH scriptpubkey
puts "scriptpubkey: #{scriptpubkey}"
puts

# split scriptpubkey in to version and witness program
version = scriptpubkey[0..1] # first byte
witness_program = scriptpubkey[4..-1] # bytes 2 to the end
puts "version: #{version}"
puts "program: #{witness_program}"
puts
# note: the size byte between the version and witness program is not used in Bech32 encoding

puts "-------"
puts "version"
puts "-------"
puts

# convert version byte to the integer value represented by its corresponding opcode
#
# 0x00 = OP_0 = 0 (P2WPKH and P2WSH)
# 0x51 = OP_1 = 1 (P2TR)
# 0x52 = OP_2 = 2
# ...
# 0x60 = OP_16 = 16
#
# caution: OP_1 to OP_16 start at 0x51, not 0x01
if (version == "00")
  version_opcode_int = 0
elsif (version.to_i(16) >= 0x51 && version.to_i(16) <= 0x60)
  version_opcode_int = version.to_i(16) - 0x50
else
  puts "Invalid version byte." # the version byte must be between OP_0 and OP_16
  exit
end

# convert version to 5-bit value
version_5_bits = version_opcode_int & 0b11111 # version should already 5 bits (i.e. 0 to 16), but take the last 5 bits just in case

# display version details
puts "version (byte):   #{version}"
puts "version (opcode): OP_#{version_opcode_int}"
puts "version (5-bits): #{version_5_bits.to_s(2).rjust(5, "0")}"
puts

puts "------------"
puts "8-bit groups"
puts "------------"
puts

# convert witness program to 8-bit integer array
version_8_bits = [version_opcode_int] # put 8-bit integer value in to an array
witness_program_8_bits = [witness_program].pack("H*").unpack("C*") # convert hex string to binary, then back in to arrays of 8-bit (1 byte) integers

# display witness program 8-bit array as binary strings
puts "program: #{witness_program_8_bits.map { |v| v.to_s(2).rjust(8, "0") }.join(' ')}"
puts

puts "------------"
puts "5-bit groups"
puts "------------"
puts

# rearrange witness program from 8-bit integer array in to 5-bit integer array
from = 8 # number of bits in starting integer
to   = 5 # number of bits in target integer
accumulator  = 0
counter = 0
max_value = (1 << to) - 1 # max value (5 bits = 0b100000 = 32)
max_accumulator = (1 << (from + to -1)) -1 # 8 bits + 5 bits - 1 bit = 12 bits = 4095 = 0b111111111111
witness_program_5_bits = [] # the return array

# run through each 8-bit integer in the witness program array
witness_program_8_bits.each do |int_8_bits|

  # return nil if negative
  if int_8_bits < 0
    return nil
  end

  # return nil if size of integer is greater than specified size of starting bit group
  if (int_8_bits >> from) != 0
    return nil
  end

  # add starting bits to accumulator
  accumulator = accumulator << from           # << = bitwise left shift
  accumulator = accumulator | int_8_bits      # | = bitwise OR
  accumulator = accumulator & max_accumulator # & = bitwise AND

  # increase counter
  counter += from

  # while there are enough bits to produce a new 5-bit group
  while counter >= to

    # decrease counter
    counter -= to

    # add 5-bit value to result
    witness_program_5_bits << ((accumulator >> counter) & max_value)
  end
end

# add padding
if (counter > 0)
  witness_program_5_bits << ((accumulator << (to - counter)) & max_value)
end

# display result
puts "program: #{witness_program_5_bits.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts

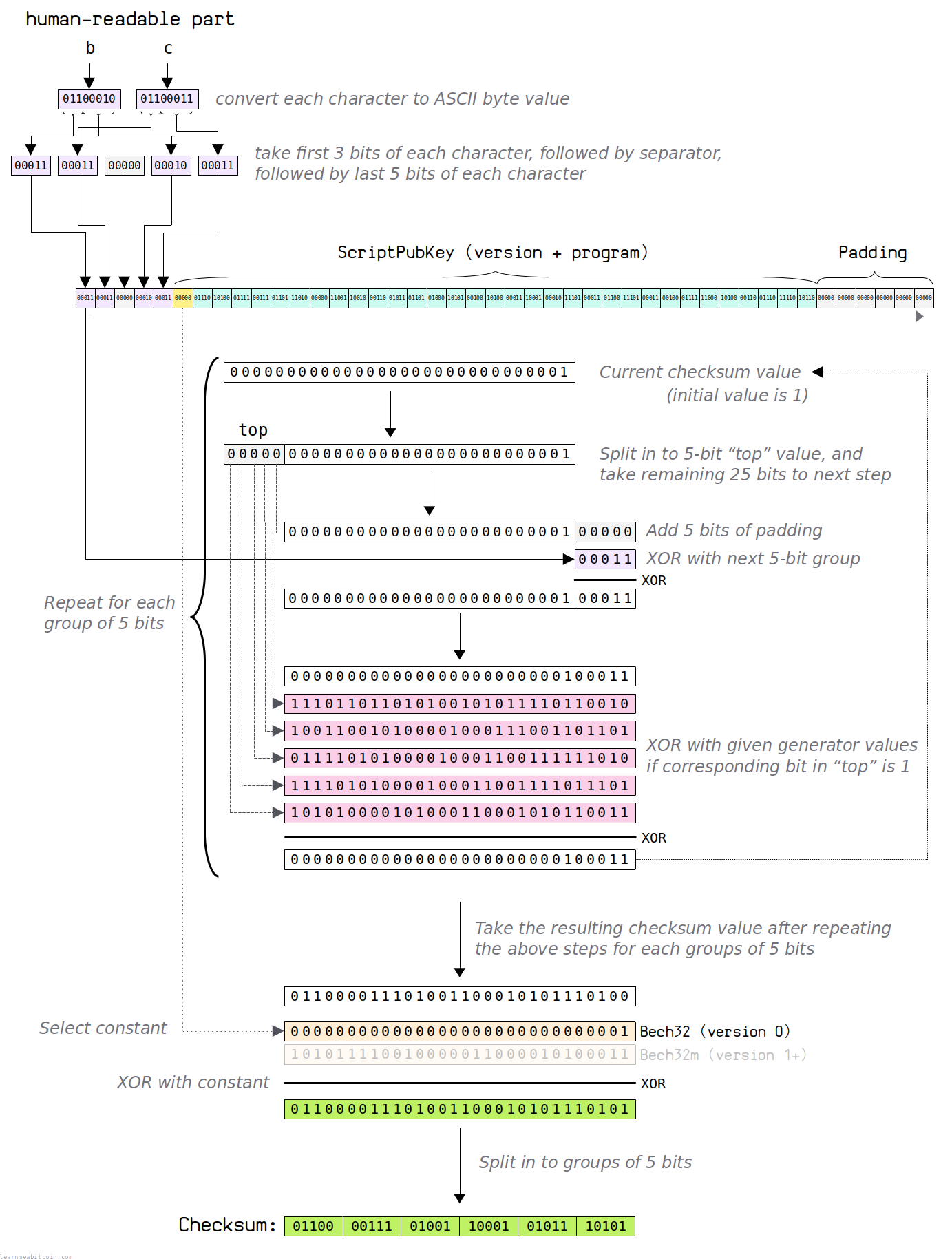

puts "------------------"
puts "checksum algorithm"
puts "------------------"
puts

# display human-readable part
puts "hrp:          #{hrp}"

# convert human-readable to corresponding UTF-8 character values
hrp_values = hrp.split("").map { |c| c.ord }
puts "hrp_values:   #{hrp_values.map { |v| v.to_s(2).rjust(8, "0") }.join(' ')}"

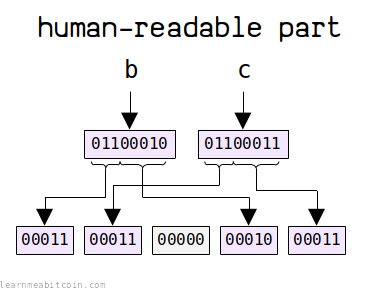

# expand human-readable part in to 5-bit groups
hrp_expanded = []

# take the first 3 bits of each character's integer value
hrp_values.each do |v|
  hrp_expanded << (v >> 5) # shift 5 bits to the right to get first 3 bits
end

# add separator
hrp_expanded << 0

# take the last 5 bits of each character's integer value
hrp_values.each do |v|
  hrp_expanded << (v & 0b11111) # use bitmask to extract last 5 bits
end

# display result
puts "hrp_expanded: #{hrp_expanded.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts

# combine the expanded human-readable part with the version and witness program (all 5-bit groups)
combined = hrp_expanded + [version_5_bits] + witness_program_5_bits

# add padding
combined_with_padding = combined + [0, 0, 0, 0, 0, 0]
puts "hrp + version + program + padding: #{combined_with_padding.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts

# checksum generator values
generator = [
  0b111011011010100101011110110010, # 0x3b6a57b2
  0b100110010100001000111001101101, # 0x26508e6d
  0b011110101000010001100111111010, # 0x1ea119fa
  0b111101010000100011001111011101, # 0x3d4233dd
  0b101010000101000110001010110011, # 0x2a1462b3
 ]

# initial checksum value (final checksum result will be 30 bits)
checksum = 1

# run through each 5-bit group in the combined array
combined_with_padding.each do |v|

  # display current checksum value
  puts "checksum: #{checksum.to_s(2).rjust(30, "0")}" if display_checksum_algorithm

  # remove 25 bits from the right of the current checksum value and store the result
  top = checksum >> 25
  puts "top:      #{top.to_s(2).rjust(5, "0")}" if display_checksum_algorithm

  # extract the bottom 25 bits from the current checksum value using a bitmask
  checksum = checksum & 0b1111111111111111111111111
  puts "bottom:        #{checksum.to_s(2).rjust(25, "0")}" if display_checksum_algorithm

  # left shift the checksum value (add 5 zero bits to the end, which creates space for xor'ing with the current 5-bit current value)
  checksum = checksum << 5
  puts "padded:        #{checksum.to_s(2).rjust(30, "0")}" if display_checksum_algorithm

  # xor the current checksum with the next 5-bit value
  checksum = checksum ^ v
  puts "5-bit group:                            #{v.to_s(2).rjust(5, "0")}" if display_checksum_algorithm
  puts "xor:           #{checksum.to_s(2).rjust(30, "0")}" if display_checksum_algorithm

  # run through the last 5 bits of the top value
  5.times do |i|

    # show current generator
    print "generator #{i}:   #{generator[i].to_s(2).rjust(30, "0")}" if display_checksum_algorithm

    # if the next bit of the top value is 1
    if ((top >> i) & 1) == 1

      # xor the current checksum with the corresponding generator value
      checksum = checksum ^ generator[i]

      # add indicator if this generator value was used for xor'ing
      puts " xor" if display_checksum_algorithm
    else
      puts if display_checksum_algorithm
    end
  end

  # display checksum value after this 5-bit group
  puts "checksum:      #{checksum.to_s(2).rjust(30, "0")}" if display_checksum_algorithm
  puts if display_checksum_algorithm

end

# display checksum value after running through all 5-bit groups
puts "checksum:      #{checksum.to_s(2).rjust(30, "0")}" if display_checksum_algorithm

# set the constant to xor the checksum with based on the version number
if (version_opcode_int == 0)
  constant = 1 # bech32
else
  constant = 0x2bc830a3 # bech32m
end

# display constant
puts "constant:      #{constant.to_s(2).rjust(30, "0")}" if display_checksum_algorithm

# xor the checksum with the constant
checksum = checksum ^ constant

# display constant and final checksum value
puts "checksum:      #{checksum.to_s(2).rjust(30, "0")}" if display_checksum_algorithm
puts if display_checksum_algorithm

# convert the checksum in to 6 groups of 5-bits
checksum_5_bits = []

# we want 6 groups of 5 bits
6.times do |i|

  # calculate the right shift amount so we can grab each 5-bit group from the 30-bit checksum
  right_shift = 5 * (5 - i)

  # shift the checksum value to the right
  shifted = (checksum >> right_shift)

  # extract the last 5 bits from the shifted value
  bits = shifted & 0b11111

  # add the 5-bit group to the checksum array
  checksum_5_bits << bits
end

# display result
puts "checksum: #{checksum_5_bits.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts

puts "------"
puts "base32"
puts "------"
puts

# combine the version, program, and checksum
data = [version_5_bits] + witness_program_5_bits + checksum_5_bits
puts "version + program + checksum: #{data.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts "version + program + checksum: #{data.map { |v| v }.join(' ')}"

# convert each 5-bit group to its corresponding base32 character
base32 = data.map { |i| characters[i] }
puts "base32: #{base32.join(' ')}"
puts

puts "------"
puts "bech32"
puts "------"
puts

# display the hrp and separator
puts "hrp:       #{hrp}"
puts "separator: #{separator}"
puts

# combine the human-readable part, separator, and base32 data
bech32 = hrp + separator + base32.join
puts "bech32:    #{bech32}" # bc1qw508d6qejxtdg4y5r3zarvary0c5xw7kv8f3t4

# --------
# settings
# --------

# base32 character set
characters = "qpzry9x8gf2tvdw0s3jn54khce6mua7l" # all lowercase alphanumeric characters except for "1", "b", "i", "o"

# display full checksum algorithm
display_checksum_algorithm = false # true or false

puts "-------"
puts "address"
puts "-------"
puts

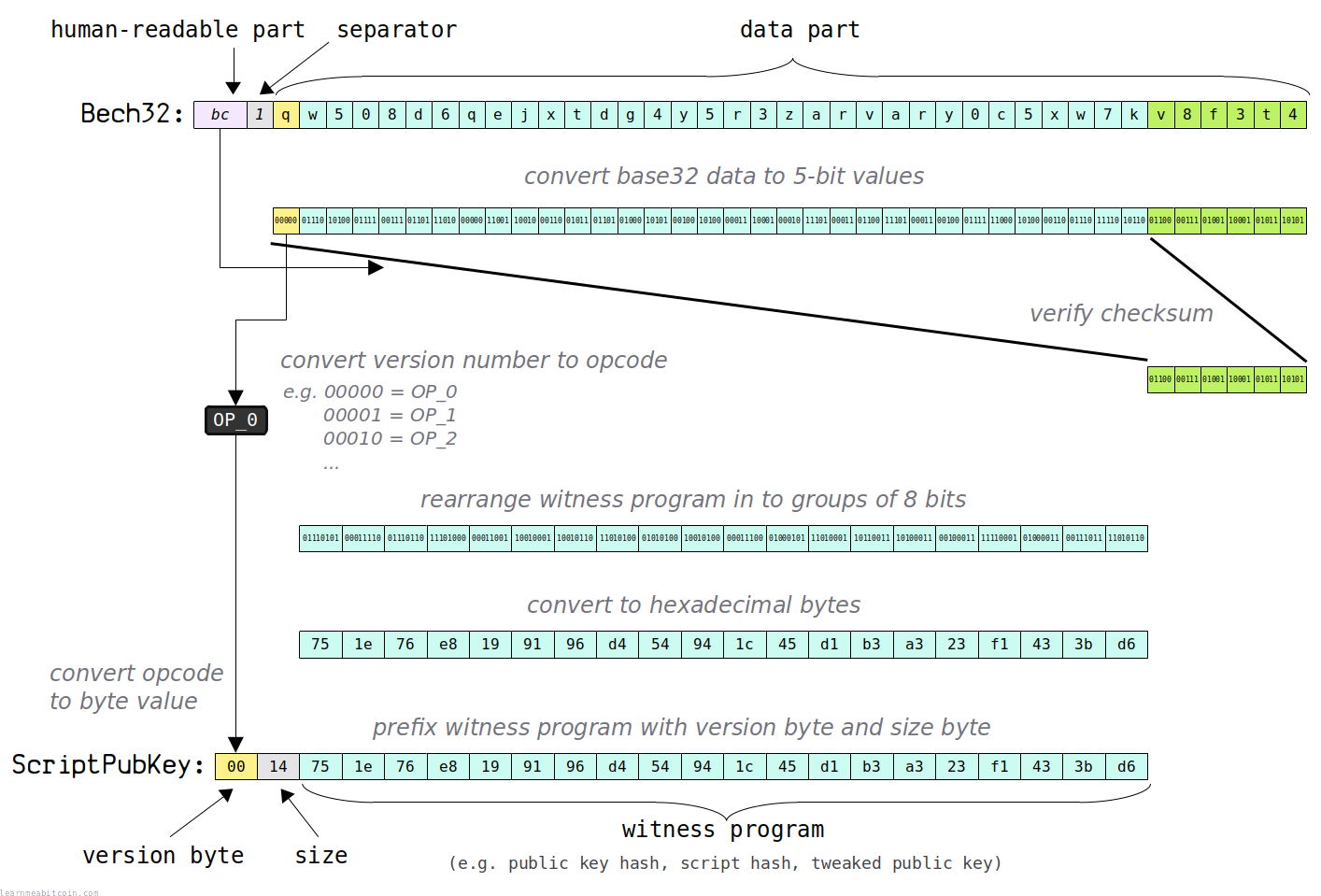

# Bech32 address we want to convert to a scriptpubkey
address = "bc1qw508d6qejxtdg4y5r3zarvary0c5xw7kv8f3t4" # example P2WPKH scriptpubkey
puts "address:   #{address}"
puts

# find the position of the separator (the last occurrence of a "1")
separator_position = address.rindex("1")
# note: the separator is always "1"
# caution: you want the _last_ occurrence of "1" as the human-readable part could potentially contain "1"

# everything before the separator is the human-readable part
hrp = address[0..separator_position - 1]

# everything after the separator is the data part
data = address[separator_position + 1..-1]

puts "hrp:       #{hrp}"
puts "data:      #{data}"
puts
# note: the separator is not used when converting the address to a scriptpubkey

puts "------------"
puts "5-bit groups"
puts "------------"
puts

# convert each base32 character to its corresponding 5-bit integer value
data_5_bits = data.split("").map { |c| characters.index(c) }

# first 5-bit group is the version
version_5_bits = data_5_bits.shift

# last 6 5-bit groups are the checksum
checksum_5_bits = data_5_bits.pop(6)

# remaining 5-bit groups are the witness program
witness_program_5_bits = data_5_bits

# display the 5-bit groups as integers
puts "version:   #{version_5_bits}"
puts "program:   #{witness_program_5_bits.join(' ')}"
puts "checksum:  #{checksum_5_bits.join(' ')}"
puts

# show the 5-bit groups as binary strings
puts "version:   #{version_5_bits.to_s(2).rjust(5, "0")}"
puts "program:   #{witness_program_5_bits.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts "checksum:  #{checksum_5_bits.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"
puts

puts "---------------------"
puts "checksum verification"
puts "---------------------"
puts
# calculate the checksum from the given hrp and witness program

# convert human-readable to corresponding UTF-8 character values
hrp_values = hrp.split("").map { |c| c.ord }

# expand human-readable part in to 5-bit groups
hrp_expanded = []

# take the first 3 bits of each character's integer value
hrp_values.each do |v|
  hrp_expanded << (v >> 5) # shift 5 bits to the right to get first 3 bits
end

# add separator
hrp_expanded << 0

# take the last 5 bits of each character's integer value
hrp_values.each do |v|
  hrp_expanded << (v & 0b11111) # use bitmask to extract last 5 bits
end

# combine the expanded human-readable part with the version and witness program (all 5-bit groups)
combined = hrp_expanded + [version_5_bits] + witness_program_5_bits

# add padding
combined_with_padding = combined + [0, 0, 0, 0, 0, 0]

# checksum generator values
generator = [
  0b111011011010100101011110110010, # 0x3b6a57b2
  0b100110010100001000111001101101, # 0x26508e6d
  0b011110101000010001100111111010, # 0x1ea119fa
  0b111101010000100011001111011101, # 0x3d4233dd
  0b101010000101000110001010110011, # 0x2a1462b3
]

# initial checksum value (final checksum result will be 30 bits)
checksum = 1

# run through each 5-bit group in the combined array
combined_with_padding.each do |v|

  # remove 25 bits from the right of the current checksum value and store the result
  top = checksum >> 25

  # extract the lower 25 bits from the current checksum value using a bitmask
  checksum = checksum & 0b1111111111111111111111111

  # left shift the checksum value (add 5 zero bits to the end, which creates space for xor'ing with the current 5-bit current value)
  checksum = checksum << 5

  # xor the current checksum with the next 5-bit value
  checksum = checksum ^ v

  # run through the last 5 bits of the top value
  5.times do |i|

    # if the next bit of the top value is 1
    if ((top >> i) & 1) == 1

      # xor the current checksum with the corresponding generator value
      checksum = checksum ^ generator[i]
    end
  end

end

# set the constant to xor the checksum with based on the version number
if (version_5_bits == 0)
  constant = 1 # bech32
else
  constant = 0x2bc830a3 # bech32m
end

# display constant
puts "constant:      #{constant.to_s(2).rjust(30, "0")}" if display_checksum_algorithm

# xor the checksum with the constant
checksum = checksum ^ constant

# convert the checksum in to 6 groups of 5-bits
checksum_verify = []

# we want 6 groups of 5 bits
6.times do |i|

  # calculate the right shift amount so we can grab each 5-bit group from the 30-bit checksum
  right_shift = 5 * (5 - i)

  # shift the checksum value to the right
  shifted = (checksum >> right_shift)

  # extract the last 5 bits from the shifted value
  bits = shifted & 0b11111

  # add the 5-bit group to the checksum array
  checksum_verify << bits
end

# display calculated checksum
print "checksum:  #{checksum_verify.map { |v| v.to_s(2).rjust(5, "0") }.join(' ')}"

# check the calculated checksum matches the checksum in the address
if checksum_5_bits == checksum_verify
  puts " ✓"
else
  puts " ✗"
end
puts


puts "-------"
puts "version"
puts "-------"
puts

# convert version integer value to its corresponding OP_N hex byte
if (version_5_bits == 0)
  version_op_n_hex = version_5_bits.to_s(16).rjust(2, "0") # OP_0
else
  version_op_n_hex = (version_5_bits + 0x50).to_s(16).rjust(2, "0") # OP_1 to OP_16
end

puts "5-bits:    #{version_5_bits.to_s(2).rjust(5, "0")}"
puts "opcode:    OP_#{version_5_bits}"
puts "hex:       #{version_op_n_hex}"
puts


puts "------------"
puts "8-bit groups"
puts "------------"
puts

# rearrange witness program from 5-bit integer array in to 8-bit integer array
from = 5 # number of bits in starting integer
to   = 8 # number of bits in target integer
accumulator  = 0
counter = 0
max_value = (1 << to) - 1 # max value (5 bits = 0b100000 = 32)
max_accumulator = (1 << (from + to -1)) -1 # 8 bits + 5 bits - 1 bit = 12 bits = 4095 = 0b111111111111
witness_program_8_bits = [] # the return array

# run through each 5-bit integer in the witness program array
witness_program_5_bits.each do |int_5_bits|

  # return nil if negative
  if int_5_bits < 0
    return nil
  end

  # return nil if size of integer is greater than specified size of starting bit group
  if (int_5_bits >> from) != 0
    return nil
  end

  # add starting bits to accumulator
  accumulator = accumulator << from           # << = bitwise left shift
  accumulator = accumulator | int_8_bits      # | = bitwise OR
  accumulator = accumulator & max_accumulator # & = bitwise AND

  # increase counter
  counter += from

  # while there are enough bits to produce a new 8-bit group
  while counter >= to

    # decrease counter
    counter -= to

    # add 8-bit value to result
    witness_program_8_bits << ((accumulator >> counter) & max_value)
  end
end

# display result
puts "program:   #{witness_program_8_bits.map { |v| v.to_s(2).rjust(8, "0") }.join(' ')}"
puts

puts "------------"
puts "scriptpubkey"
puts "------------"
puts

# calculate the size of the witness program and convert to hex byte
witness_program_size_hex = witness_program_8_bits.size.to_s(16).rjust(2, "0")

# convert witness program to hex
witness_program_hex = witness_program_8_bits.map { |v| v.to_s(16).rjust(2, "0") }.join

# display the version, size, and witness program as hex
puts "version:   #{version_op_n_hex}"
puts "size:      #{witness_program_size_hex}"
puts "program:   #{witness_program_hex}"
puts

# combine the version, size, and witness program in to a scriptpubkey
scriptpubkey = version_op_n_hex + witness_program_size_hex + witness_program_hex
puts "scriptpubkey: #{scriptpubkey}" # 0014751e76e8199196d454941c45d1b3a323f1433bd6
